DIY Boaters MUST KNOW About This Material!
15 views
Aug 16, 2024
Learn More About Your Boats Systems By Joining The Born Again Boating Academy! https://www.bornagainboating.com/ Get Your Born Again Boating Clothing! https://www.bornagainboatingshop.com Get Savings On Boat Parts With BAB Coupons At Partsvu Here: https://shareasale.com/r.cfm?b=1991037&u=3159438&m=119617&urllink=&afftrack= Please Buy Anything From This Link To Amazon & Help Us Keep Bringing You Content!!!! https://www.amazon.com/?&_encoding=UTF8&tag=bornagainboat-20&linkCode=ur2&linkId=97bb1968e1ac47dfc3703d401d95fb5a&camp=1789&creative=9325 Join this channel to get access to perks: https://www.youtube.com/channel/UCWZhbfXDCg7_PvlwvierP1A/join Join this channel to get access to perks: https://www.youtube.com/channel/UCWZhbfXDCg7_PvlwvierP1A/join Subscribe To Our Podcast! The Boater's Podcast: https://www.youtube.com/channel/UC6Y2xnr23ERD2n_t51Jv4-Q?sub_confirmation=1 ------------------------------------------------------------------------------------------------------------------------------------------------------------- PARTS USED: The Dash Panel: https://2ly.link/1z7Rf The Windshield: https://2ly.link/1z6K1 SeaDeck On Console: https://2ly.link/1z6K0 Lithium Batteries Epoch Batteries: https://2ly.link/1yj0G
View Video Transcript
0:00

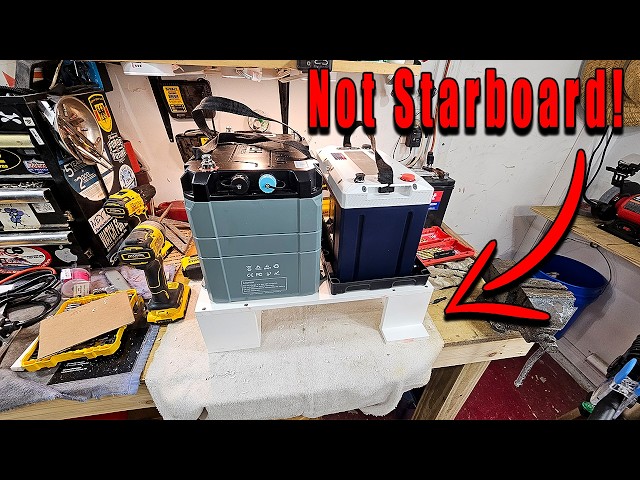

Alright, we got this thing built. This is looking awesome. Holds the batteries, no problem, no flexing at all
0:06
That brace in the middle is pretty much the ticket there. So I want to move these two batteries right here up into my console
0:14
And as you can see, there is not a lot of space up here. What I need to do is build a shelf. I'm going to go ahead and I need to move all these wires. I'll probably pull them out of here, get them to the side
0:25
And I want to build a shelf that is like five inches off the ground. That way this
0:30
steering cable and my shift and throttle cables here won't necessarily be in the way
0:35
First thing I need to do is this backing plate back here, that thing right there
0:39
I need to go ahead and mount that and then I want to put both of the speakers in so that
0:44
way we can get our measurements to build the shelf. And what I'm going to build the shelf out of is going to be crucially important if you
0:50
work on your own boat or you do any kind of DIY stuff because it's going to be way cheaper
0:54
than building out of fiberglass or going and buying starboard. So let me show you what that stuff is when we get all of our measurements
1:01
Okay, so we got our piece on the back back there
1:15
We got our two speakers in here. So now we kind of see how much space we have available in this console now
1:22
It is very tight, obviously. So looking at our measurements, this is the width of the trawling motor battery
1:28
10 and a quarter and then this is the starting battery tray which is 13 and a half so those two together because we're going to put the starting battery like this and the trolling motor battery like this that's what we would like to do but the problem is that 10 and a quarter and 13 and a half is 23 and 3 quarter which between our two speakers here we only have 22 and just a
1:58
under a half. So now we have a legitimate issue as far as where we are going to be able to
2:07
stick these batteries. With this cable and the way this cable is, this kind of has to go like
2:12
I wonder if I stick this cable like this, if I could maybe stick my other battery right
2:18
here, but then it can only stick up so far. So we've got 13 and yeah, that's, this is a concern for sure
2:28
Now, how much do we have in between this? I mean, that's too much there, too
2:34
They won't even fit sideways. Like, we can't even stack them up in here
2:39
Well, maybe, actually, if I go sideways and sideways, but that's going to cover this up pretty significantly
2:46
There will be literally no access to this, which is a legitimate concern of mine
2:53
These cables aren't really concerned because they can go like this and they're out of the way
2:57
so those are not a problem. We've got plenty of space here, but covering up this rigging
3:02
I can move most of it like that, so I could build something over the top of that
3:07
Now, if we put them side by side like this, we would need 10.5 and 8.5
3:14
which is, that gives us 18 and 3 quarters. So 18 and 3 quarters
3:23
and we've got 22.5. So if we've got 22 and a half between the speakers, this cable, I could put it all the way to like that
3:32
So that's not really a concern. But getting to this is ultimately my concern is there's no access to this
3:41
So both of the batteries will have to come out in order to get to this tray
3:44
So both of the trays are 13 and a half, which that's kind of a good thing
3:51
So 13 and a half for both of those. So 13.5 comes out to here, like no matter what, 13 and a half is all the way to here
4:03
So we are 2 and 3 quarters. So there's 2 inches in 3 quarter to get into here
4:11
So like there's, you know, I guess that would be access. The problem then that we have is we need a backing plate on this, which is a half
4:23
inch so that's going to push this out to 14 which only gives us two and a quarter so no matter what
4:29
there's going to be very minimal space to get to this piehole cover and the batteries will have to
4:34
come out in order to get to it but as far as being able to place both of the batteries here that's what
4:40
it's going to be so i need 14 inches and 14 inches by 22 and a half is pretty much what i have to
4:48
build the top to so our measurements for the tray that we're going to bill i'm going to do
4:53
inches by 14 inches and then once we get that then we'll go ahead and figure out how to build the legs
4:59
now what we're going to build this out of is going to be pvc board um it's a cheaper product that you
5:05
can get you can get it from a lot of different places pretty much every home depot and lows and
5:10
hardware stores stuff like that they will all carry it it is way cheaper than starboard but the thing about it is i make a video about acrylic and starboard and pvc board and the differences main thing about PVC board it is it is not near as durable as HPDE which is what
5:28
starboard is that's the material that starboard is we're gonna go get some of that pvc board I'll
5:34
show you what it looks like and where to get it at home depot and the prices it's the piece
5:39
that we're gonna get we're gonna get a pre-cut piece because I don't need a full sheet
5:43
normally what I would do is buy a four by eight sheet and then
5:46
just cut what I need out of it and have the rest saved for later, but I'm limited on space
5:51
right now, so I'm not going to get a 4x sheet. I'm just going to get a 2x4 sheet so that way I can
5:56
cut what I need out of it. And then we're also going to be making a backing plate for our electronics
6:01
twos be mounted to. The stuff is super durable, so it's really good for using inside of a
6:08
console or using inside of a hatch or in a build or something like that because it's way better
6:14
than wood, but it's not as expensive as starboard, but you can use it basically identically
6:19
as you would use starboard just at a much cheaper rate. And also, it's just, yeah, it's much
6:25
cheaper and much easily accessible than starboard is or a piece of acrylic, which would be way
6:31
more expensive to be using for a backing plate. So if you're sticking something down in a hole
6:36
perfect for doing that. Mounding water separated brackets, stuff like that. This stuff is
6:40
perfect for that. So here is our sheet. Now what we need to do is go ahead and measure it out. So
6:46
basically this sheet is going to be 24 inches by four feet. So I just need to carve out a 19 inch by
6:52
14 piece. This is just under 24 inches. So got about 23 and 7.8s. So I'm going to cut out
7:00
just a 14 inch piece. So once I slice down 14 inches, then I'm going to go ahead and
7:06
slice off the other section. That way I can use that to chop up
7:10
for making the legs and then I've got the rest of the sheet to make a battery box that I want to make
7:16
to put the rig pros in that we're going to get from New I Marine as well as backing plate for
7:22
our charger here. This is the charger that we need to mount to the wall for our trolling motor
7:27
battery as well as all of those junction boxes and all of the bus bars for our ground cables and
7:33
all of our wiring. So let me go ahead and cut out a 14 inch piece off the top and then I'll make it 19
7:39
inches then we'll go put it in the boat and see how we're going to make the legs
7:51
When it comes to working with PVC and starboard and stuff like that, I still like to put tape on my saw
7:57
even though this is still a pretty clean saw as far as the bottom half go. It's not all scratched
8:03
up and messed up. But putting this on here, when you run it through here, even if you're on a table saw
8:07
something like that, making sure. because this stuff is super soft. It'll scratch very easily
8:12
so making sure we get a clean line and don't scratch up the surfaces
8:16
even though this is going underneath battery, so it really doesn't matter, but that's just a good tip for working with this stuff
8:33
All right, so this is going to work perfect. Got all of our measurements right
8:39
back back here that's gonna also work perfectly so our depth and everything's good
8:45
now let me go ahead because this one's gonna go on the opposite side let me go
8:50
to take this out there and figure out our feet I think I know what I'm gonna do though it's gonna be kind of wasteful but not really that wasteful because we want
8:57
this thing to be stuck down so if this is sitting in the console like this our pie
9:03
hole cover is gonna be here and I know that pile hole cover is five and three eights from the
9:08
end. So if I'm 5 and 3 8th into here, I might just make one piece, I might just cut like a 5 and 3.8 inch strip out
9:15
That'll go all the way across the back like this. Then I want this thing to be 5 inches tall. So I have
9:21
like 14 inches here. So I got 14 inches there, which 4 divided by 3 if I make 4 inches because
9:33
this is a half, that's a half. If I want it to be 5, that gives me an inch. So I need to be 1.5. So I
9:38
I need four inch pieces for our legs, which means I could get all three legs out of this piece
9:43
and just run one strip all the way across that's five and three-eighths in with a leg here
9:48
leg in the middle, and then a leg right here. And I'll probably take these legs will be like this, and then the middle leg I'll probably
9:55
make like this. That way it gives it the most stability in the middle, and this will be down the side
10:01
So we got stability there, stability there, and then in the middle. So the way the weight of the batteries are kind of taken care of
10:07
Up here in the front though, those legs are going to be the only thing that might be a problem because if this, if I have a piece like this, I can screw this straight to the deck with the legs screwed onto it and then screw the top right down to it
10:21
So that way this thing isn't going anywhere. The weight of the batteries is going to be keeping the shelf down
10:27
It's not really going to be worried about, you know, bouncing around. You know, just a couple screws will keep this thing stuck down and moving around and the weight of batteries will just keep it down
10:38
So I don have any worried about that So I might not even have to really screw the front legs down We take a look at it once we get it in there but I think if I do this in the middle
10:49
it might be enough to have this thing just be exactly like that
10:54
So let me go ahead and just cut out a 5 and 3.8s piece of this boil, 5 and 3.8s
11:00
and then I'll cut it down to 19, just like we have here, move it all the across
11:05
and then put our legs on it. So that way that'll be done
11:09
and we'll take that out there and figure out how to do the front legs here in the front
11:16
because the piling covers here, the rigging is here. So this leg is kind of the only one
11:21
that's going to be like a standalone leg that, I don't know, I'm going to have to figure out
11:26
how to secure it so it doesn't snap off. This one right here, I could do something similar
11:30
like I could put a piece from here to here with a leg and a leg
11:35
and that will be enough stability there, but let me go ahead and make this back set of legs first
12:05
I'm going to be. I'm going to be
12:37
I'm going to . I'm going to . . . . . . . . . . . . . . . . . . . .
13:11
This is a little bit of the and
13:22
this is starting to look
13:41
really, really good. I got the back half or the bottom or back legs put on there
13:47
That's real good. I'll just unscrew these screws up here on the top and then that
13:51
way we can just screw this down to the deck when we get in the boat
13:55
Now, I need to go put this in the boat and figure out how to do these front legs
13:59
That's the only thing that we need to kind of figure out once we get those
14:03
front legs on there, this thing's going to be pretty solid. So let's go put this in the boat and
14:09
figure out these front legs. Alright, this is definitely super tight
14:22
Like I was saying, you got like no access to get down to this
14:26
I mean, you could slide your hand in there, but that's definitely, definitely a pain to get down there
14:31
But nothing else we can really do. I want to kind of center these on these speakers
14:37
So I got one and three quarter there. and we got one and three quarter there so this is pretty well centered so four and a half I might just make this
14:50
four and a half's where that cover is gonna go out So that's about where our pie cover starts. I might just make this four and a quarter just to be safe
15:00
Give me a little bit of room there so we got roughly four and a quarter and then until we hit this
15:08
this can kind of move I mean I can I can move that around a little bit. Five and a half. I'll do five and a half just to make it easy
15:17
So five and a half by four and a quarter. That'll do that leg so that way we'll have supports
15:23
We'll have a support here and we'll have a support here. Now that only leaves us with figuring out
15:30
this corner right here which there's like nothing there. So I mean I might just have to make like an
15:36
L bracket. So just have this go down and then have one flat spot there
15:41
that kind of sticks out of way I can kind of screw that there which if I did that that means
15:47
we could realistically get roughly a four inch piece so if I just make a four inch and then that gives us
16:01
if I gave it two inches that be enough to screw to it screw down there Okay let go make our brackets
16:30
I'll have a lot of the I'm not going to be
17:02
I'm going to . I'm . . . . . . . . . . . .
17:30
And there we go. This is outstanding. I mean, the middle's a little bit flexible, but I mean, you know, that leg right there is also a little bit, you know, questionable. I think once the batteries are on here and this thing is bolted down though, there won't be any, any kind of problem, especially because the bigger battery is going to be over here and the lighter batteries over here. So I don't think we're going to have any problem there
18:00
Now, once this thing's bolted down, this is rock solid. I mean, if I wanted to put any more bracing in there, I could put something right here
18:08
but I just don't think that's really necessary. Let me go ahead and stick the batteries on here, see how they do
18:14
And also, because it's so tight in there, these corners, this is all sharp
18:18
I need to get rid of these edges, which is super simple. All you need to do is take a razor blade and go like this, and you can get rid of that edge
18:25
That's what I'm going to do. I'm going to go around here, knock down all these sharp edges
18:29
that way nothing in here will be cut by any of this. I can just take this knife and run down
18:35
there and smooth that off just to make it so there's no sharp edges so you don't cut anything
18:40
don't cut a wire, nothing like that. All right, we got this thing built
19:05
This is looking awesome. This is definitely the front. Holds the batteries, no problem, no flexing at all
19:12
That brace in the middle is pretty much the ticket there. Now, you know, this might not seem like a big deal knocking these corners down, but I went
19:21
ahead and I went all the way around it knocking down because a wire and then also when you get
19:25
to that hatch, remember you're got to stick your hand like this and you're going to be a rubbing
19:28
So if you're putting pressure on there like that and really like cutting, if you didn't do that
19:33
it would slice up my hand, but no problem there. So now I can get in there and mess with stuff if I need to, but also wires
19:41
I didn't want any of the wires that are going to be touching this
19:46
especially coming out of this rigging tube over here. So when the wires come out of this rigging tube, if any, I'm going to have to feed some that way
19:52
in order to get them to the other side and also my cables for the shift and the throttle
19:56
So we just didn't want any sharp edges for any of those. those to be rubbing on and potentially having a problem later
20:03
The battery tray, this kind of has like a little bit of an overlap. This actually, look at that
20:08
I could probably even tighten these up a little bit more because this battery tray will
20:12
actually fit over that leg of that one, but I don't really want to do that
20:15
I'd rather have access to both screws and, you know, get this over to the side anyway
20:21
So that's about like that. I might cheat this over a little bit, a little less, you know, maybe a quarter inch on
20:27
this side, quarter inch space on this. I'm not sure how I want to bolt these down just yet
20:32
Obviously, I'm just going to do self-tappers. Not a problem there. I'm not through bolting them or anything like that
20:37
Just self-tappers all the way through. I'm going to do ones that aren't sticking, you know, too far out from underneath here
20:44
Because, again, it wires stuff like that. I don't want anything to be cutting there. But this tray looks outstanding
20:51
Let me go put it in the boat and make sure it works. And then also I'll screw holes through here
20:56
And then I'll put some holes in that one. then in the back one as well to seal this to the deck to keep it in place as we you know before
21:04
we install these batteries now we can really see what we're looking like this looks out absolutely
21:10
outstanding um love this box so this is the PVC board that we made and it looks absolutely
21:18
outstanding in here batteries are perfectly in the spot now what i need to do is go ahead and
21:24
figure out where i'm going to mount all of my stuff
#Boating
#Boats & Watercraft
#Vehicle Repair & Maintenance
