0:00
You may or may not be amazed at how similar the service procedures are between multiple different four-stroke engine brands
0:08
Believe it or not, they are all basically the same and we're going to show you how
0:14
Just like the two-stroke service items, a four-stroke engine requires all the same service items no matter what brand it is
0:21
They all require oil, an oil filter, spark plugs, thermostats, engine fuel filters
0:30
boat water fuel separators, most will have a belt, anodes, grease points, water pump impellers, and gear loop
0:40

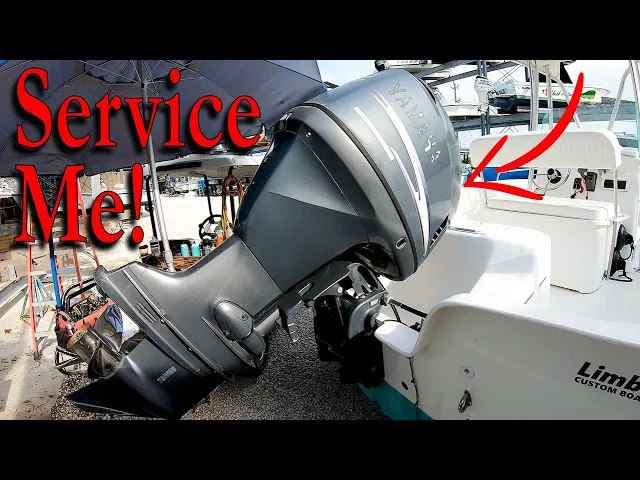

We're going to do a service on a Yamaha F-115 4-stroke as well as a Mercury 115 forestroke just to compare the procedures
0:48
The first thing we want to do is pull the dipstick, clean it off, and reinstall it to check the oil level
1:00
Like on this Merck, there wasn't even any oil on the dipstick, and then on the Yamaha, the oil level was a little high
1:11
If you don't see any oil on the dipstick, it might be a good idea to go ahead and do a compression check on the engine just to be sure there's nothing wrong
1:20
And last week's video was all about compression tests, so we won't cover that here today
1:25
We'll go ahead and drain the oil out of the engine now after check
1:29
checking it. And all outboards have an oil drain plug somewhere on the engine. Like on these
1:35
mid-sized 115's on the Merck, it's here on the port side of the mid-section, then on the
1:41
Yamaha, it's here on the back of the engine. You can use a piece of the oil filter box as a way to funnel the oil on the Merck, or like on
2:00
Yamaha, a piece of build hose works great to drain out the oil into a bucket
2:10
While that's draining, we can go ahead and change out the oil filters that will be mounted
2:14
somewhere on the powerhead You got to be careful with these filters though that are on the side like this because they generally make a mess when you take them off Then we can clean the surface where the filter goes and install the new filter with a little bit of oil or grease on the seal to make it easier to get off next time
2:32
You'll also notice that on a four stroke once we get the ignition coils or coil leaves off the spark plugs and get the plugs pulled out of the engine
2:43
They can develop this burn mark around the bottom of the ceramic on the plug here
2:49
Once this gets to this really burnt looking base and the tips also lurk burn up, it's
2:54
time to change out the plugs. When installing the new plugs, put a little bit of ANICs or something on them just to help
3:01
on pulling them out next time. But just a little bit, you don't want to go overboard with it, just a little bit goes a long way
3:08
Next up we'll change out the thermostat, which as you can see, this is a perfect
3:13
example of why you want to at least check the thermostats every other year. It doesn't
3:17
take much for them to stick and then once they get stuck like this, they can begin to build
3:22
up salt and start to eat out parts of the housing where the thermostat sits. Not to mention
3:27
that this thermostat was stuck open anyway. Though many of you probably live in freshwater
3:32
areas where you don't even have to deal with anything like this, so this is irrelevant to you
3:43
But after installing the new thermostat, we'll move on to changing out the engine-mounted fuel filters
4:03
Some engines, like our Yamaha, will have a cup that you can unscrew and then it will have the fuel filter inside the cup
4:09
You might notice how brown and discolored this filter is, that's a good sign that it's time to change out the filter
4:20
Then on the Merck, it actually has two fuel filters on the engine
4:28
The trick to these is also just like the trick to getting the canister filter off of the HPDI that we showed you a couple weeks ago in the two video You just have to push in on the filter then depress the red tab here on the hose and then
4:46
we can pull the hose off of the filter and dispose of the filter. When installing the new filter, just make sure that the arrows are pointing towards the fuel
4:54
injectors as well. Now the grease points on the four-stroke are basically the same as the two-strokes
5:01
There are the points on the bracket here, and then one on the midsection, and then one on the mid-section
5:05
And depending on the brand or model, you might find some grease fittings on the handles
5:10
Just a couple of pumps of grease will do fine and we can move on to changing out the boat water separators
5:16
Which if they look as rusty as this, you might want to think about setting a reminder to change it out a little more often
5:22
When it comes to the water separators, you can see why they are so valuable whenever you take it and dump it out into a clear jar and you can see all the debris that gets collected in them
5:35
Then just like the two strokes, we want to top off the power tilt and trim reservoirs
5:49
And then we'll want to check the anodes on the brackets and change them out if they need to be changed
5:54
Also, don't be shy with the grease whenever you put the anode bolts back in as well
5:59
Now the only thing left to do is pull the lower units and service them
6:03
You want to pull the prop off first and then there will be bolts on the sides of the lower
6:08
unit as well as a bolt up under the trim fin anode here
6:30
We do have videos on completely resealing the lower units. We do have videos on completely resealing the lower units, but a couple of main tips to look
6:35
at whenever you do a service on a lower unit, like on these Yamahs, this top seal cover that
6:40
goes above the drive shaft carrier seals, if you can pull the rubber off the metal like this
6:46
then it's time to replace it. Then if you see the springs on the seals broken or rusty like this, then we've got to pull
6:52
the carrier and replace these seals Which isn hard to do with a couple of big flathead screwdrivers you can pry up evenly on both sides of the carrier and get it to come up
7:13
But be careful not to lose the shims or the bearing race that are underneath the carrier
7:18
Now just stick the carrier in a vise and pry out the old seals. Clean up the carrier and press in the new seals with a socket
7:34
And we can grease up the O-ring and reinstall the carrier with the new seals
7:55
Now just grease everything up as you reinstall the water pump impeller and the water pump housing assembly
8:25
With fresh gear loop in the lower unit and everything service, we can grease up the lower unit and reinstall it onto the engine with the gear case in neutral
8:48
Make sure to line up the shift shaft and slide it back up into the midsection
8:55
We'll reinstall all of the bolts and the prop and now give you a sneak peek into next week's video
